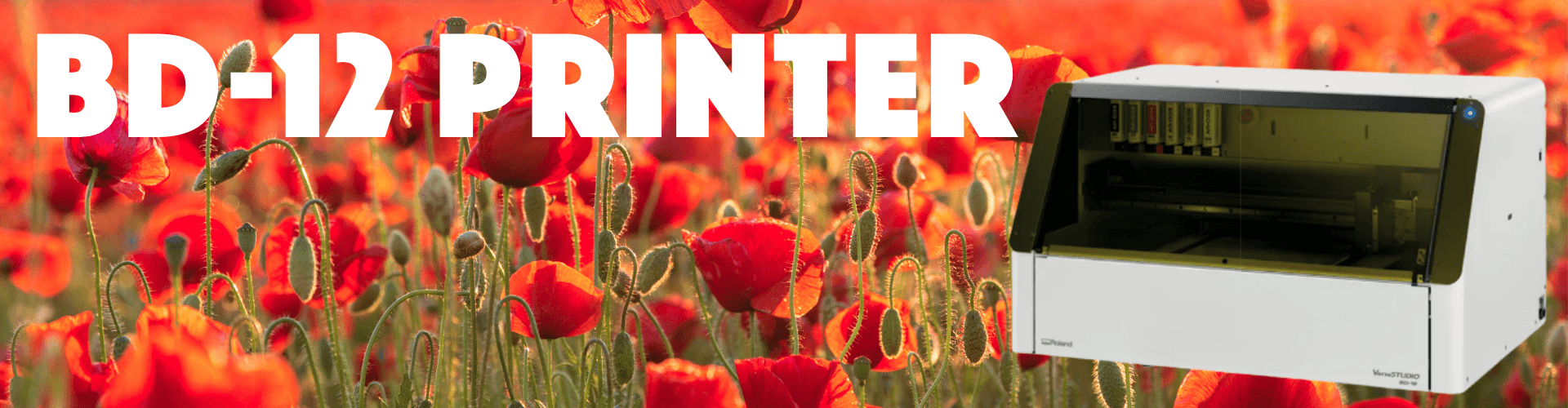

Roland VersaSTUDIO BD-12 Printer
The BD-12 is a desktop UV flatbed printer which delivers extraordinary product customisation. Perfect for beautiful colour prints onto a variety of items including funeral plaques, grave markers, condolence books, plates, glass, mirrors and more. It can print on items up to A4 in size and up to 102mm in height. It is ideal for opening up opportunities to support your families by being able to personalise objects at an affordable price.
Key benefits:
- Simple and easy to use regardless of experience level
- Capable of printing vibrant and detailed graphics on a wide range of objects
- FlexiDESIGNER VersaSTUDIO Edition Software and VersaWorks for easy operation, including registration mark system for simple image placement on objects
- Ink configuration: ECO-UV (EUV5) CMYKWh + Primer or Gloss
- Built-in Fume Extractor
- Utility Software to control all functions from a PC
- Compatible with Roland DG Connect remote monitoring to reduce downtime and improve efficiency
Roland VersaSTUDIO BD-12 Desktop UV Flatbed
Features
-
Open Up Opportunities: Perfect for condolence books, phone covers, cosmetic cases, fashion, sports memorabilia, gifts, bottles and more
-
Printable Size: Items up to A4 size and 102mm in height
-
Personal Touch: Ideal for adding the ultimate personalisation on objects all within environments with limited space
Easy to fit into your existing operation to produce a wide range of additional items for your families.
Simple to learn, easy to set up and use.
Fully supported by quality assured engineers including CreativeCare and RaynerCare.
As an invaluable tool in your business, all machines come with a one-year warranty from Roland and Rayners Ltd.
Applications
Funeral Plaques
Stationary
Packaging and Boxes
Phone Cases
PVC & Plastics
Specifications
| Printing Method | Piezo ink-jet method | |
| Attachable objects to be printed on | ||
| Width | Max. 12 in. (305 mm) | |
| Length | Max. 8.2 in. (210 mm) | |
| Thickness | Max. 4 in. (102 mm) | |
| Weight | Max. 11 lb. (5 kg) | |
| Maximum printing width/printing length | Max. 12 in. × 8.2 in. (305 mm × 210 mm) | |
| Ink Type | ECO-UV (EUV5) 220 ml cartridge | |
| Colours | Five colours (cyan, magenta, yellow, black, and white) plus primer or gloss | |
| Ink-curing unit | Built-in UV-LED lamp | |
| Printing resolution (dots per inch) | Max. 1,440 dpi | |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Rated input | 100-240 Va.c. 50 / 60 Hz 1.1A | |
| Power consumption | During operation | Approx. 100 W |
| Sleep mode | Approx. 40 W | |
| Acoustic noise level | During operation | 60 dB (A) or less |
| During standby | During standby | 55 dB (A) or less |
| Dimensions (Width x Depth x Height) | 39.2 in. × 28 in. × 23 in. | (995 mm × 710 mm × 583 mm) |
| Weight | 177 lb. | 80 kg |
| Environment | During operation | Temperature: 68°F to 89.6 °F (20°C to 32°C) (71.6 °F [22 °C] or higher recommended) |
| Humidity: 35% RH to 80% RH (no condensation) | ||
| Not operation | Temperature: 41°F to 104 °F (5°C to 40 °C) | |
| Humidity: 20% RH to 80% RH (no condensation) | ||
| Included Items | Power cord, Cleaning liquid, User's Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc. |
